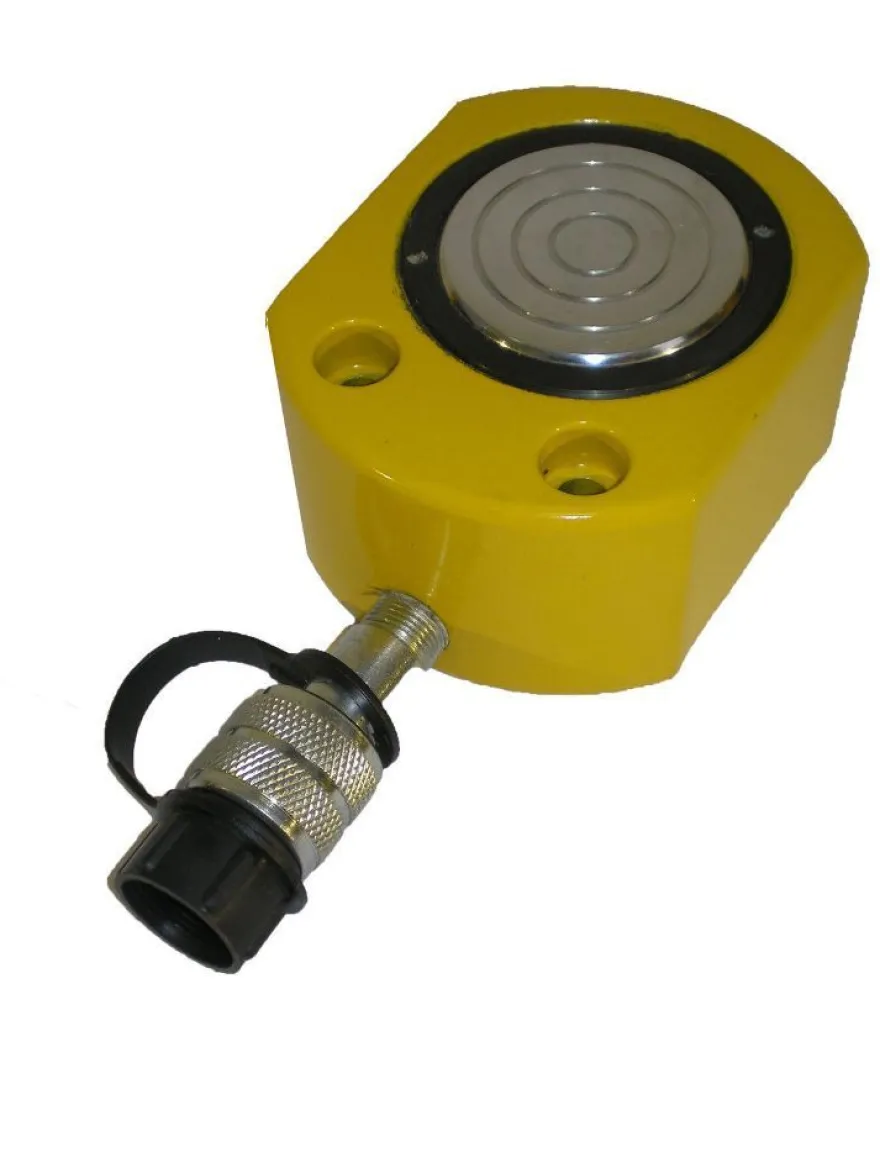

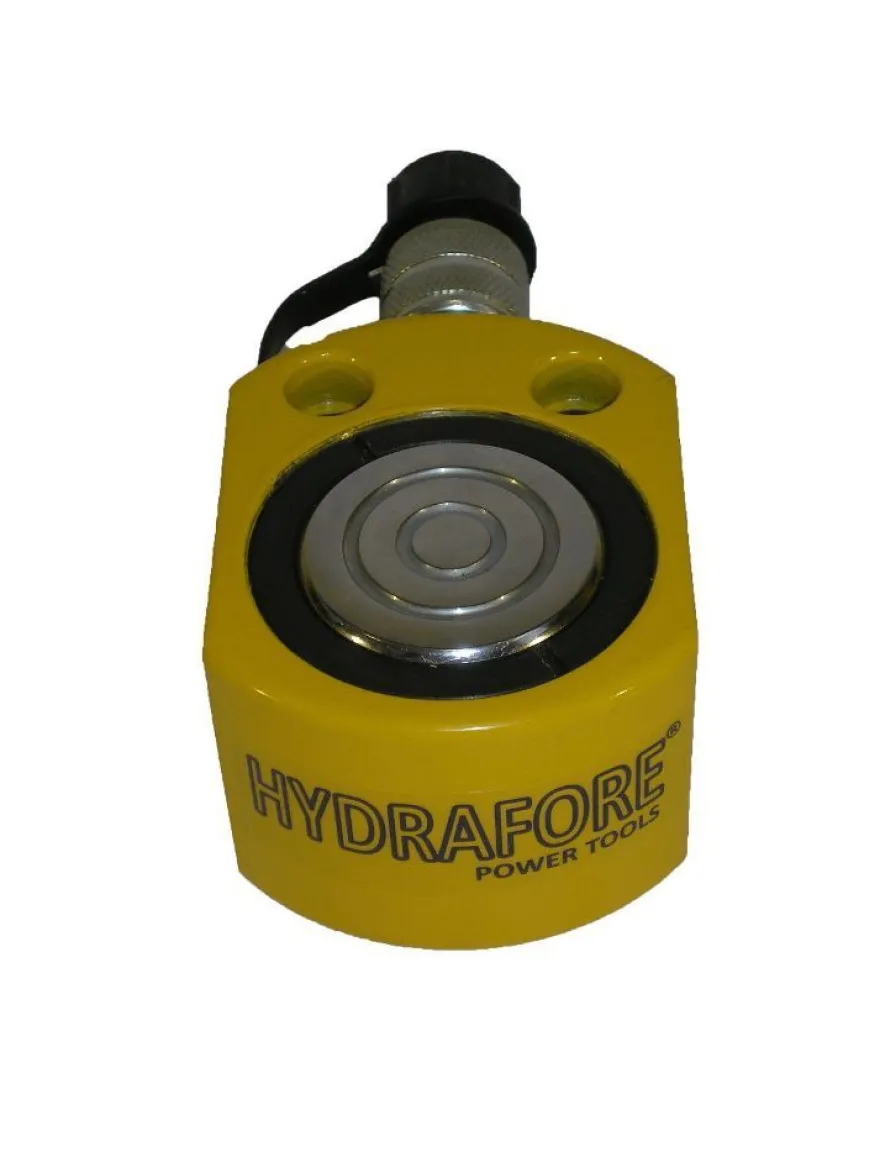

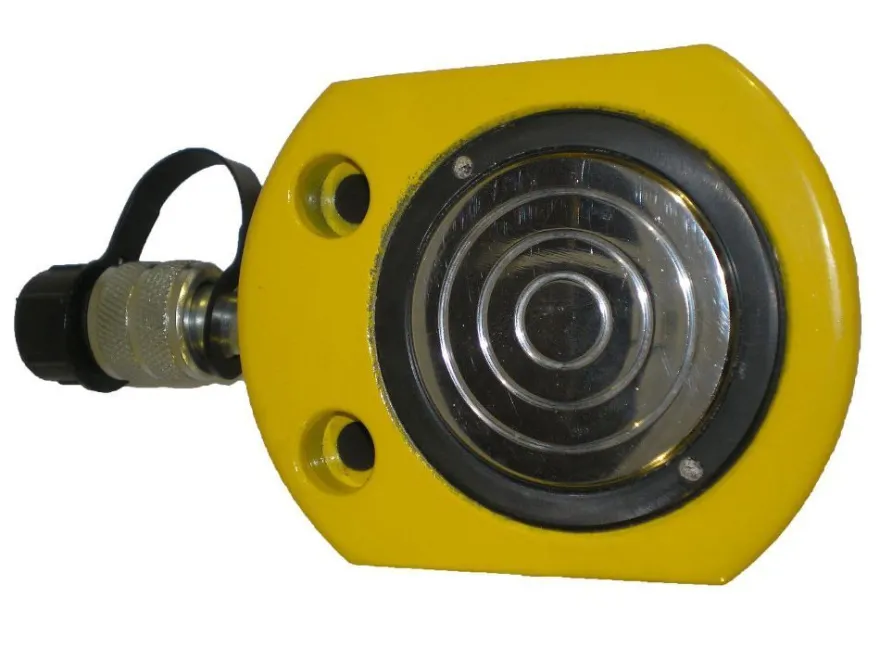

30 ton 14mm Hydraulik Zylinder Kurzhubzylinder Hydraulikzylinder 30t hub 14 mm

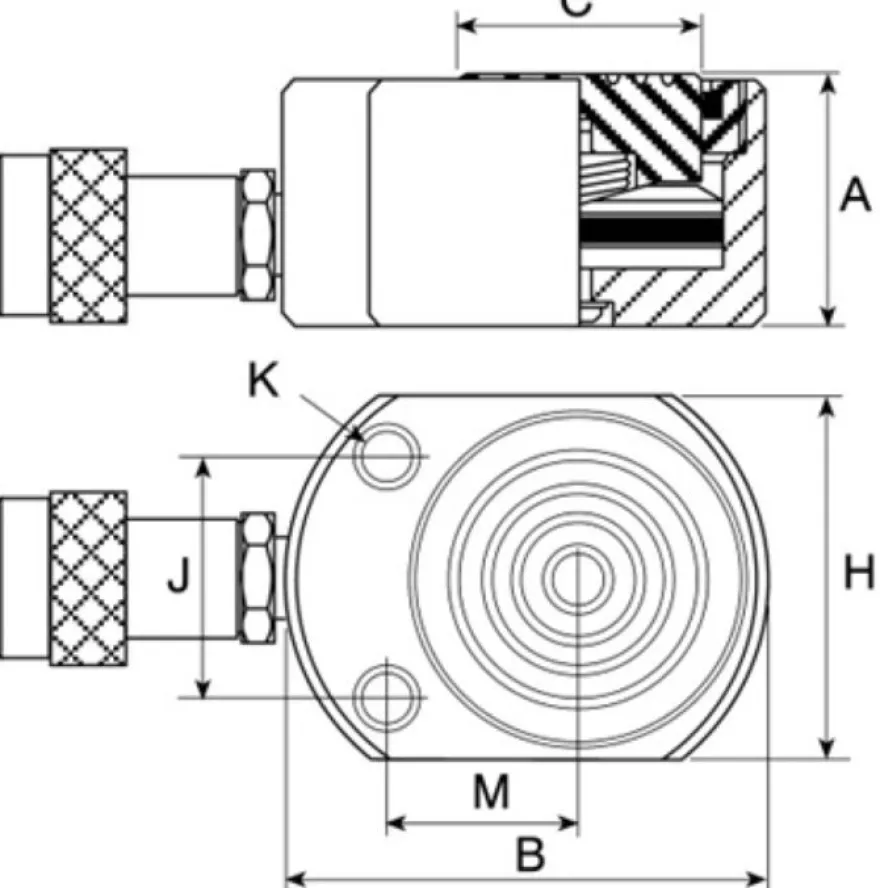

YG-10B:

A = 47,8 mm

B = 83 mm

C = 37,9 mm

J = 35,4 mm

H = 60 mm

K = 7 mm

M = 35 mm

YG-20B:

A = 55,5 mm

B = 98,8 mm

C = 49,9 mm

J = 49 mm

H = 76,4 mm

K = 9,3 mm

M = 38,5 mm

YG-30B:

A = 61,7 mm

B = 123,5 mm

C = 63,9 mm

J = 53 mm

H = 98,3 mm

K = 10 mm

M = 46,5 mm

YG-50B:

A = 72 mm

B = 148,1 mm

C = 70 mm

J = 74 mm

H = 120 mm

K = 10,8 mm

M = 59 mm

YG-100B:

A = 91,3 mm

B = 190 mm

C = 100 mm

J = 93 mm

H = 160 mm

K = 13 mm

M = 77 mm

YG-150B:

A = 100 mm

B = 220 mm

C = 115 mm

J = 105 mm

H = 190 mm

K = 13 mm

M = 90 mm

YG-200B:

A = 110 mm

B = 255 mm

C = 135 mm

J = 150 mm

H = 24,3 mm

K = 13 mm

M = 95 mm
